American Lutherie #114 cover shows the hands of Stephen Marchione shaving the braces of a classical guitar.

American Lutherie #114
Summer Issue 2013
Web Extras



Page 6 - Hearing Voices: A Recipe for Voicing the Steel String Guitar by John Greven

Mike Doolin made these videos of John Greven explaining and demonstrating his voicing method.

John Greven on Selecting Guitar Tops

John Greven on Selecting Brace Stock

John Greven Plays the Finished Guitars

These are audio clips from the 2011 convention workshop.

Audio clip (34KB):
A really stiff Lutz top.

Audio clip (49KB):
The mate, sanded down. This demonstrates the variability of ping tone with thickness.

Audio clip (70KB):
B-Grade Adirondack. The tone is a little bit muddy, but the footprint of a smaller guitar will tighten it up. Variable grain spacing and a small knot make this a $7 top.

Audio clip (57KB):
German spruce with extremely tight grain, moderately stiff. $180.

Audio clip (49KB):
This Adirondack top has a lot of interference, or motion other than the fundamental.

Audio clip (64KB):
Adirondack. Color streaks reduce the cost to $100. This wood is unique in that it’s both relatively soft and very stiff. This guitar will be crisp and clean, but also warm.

Four grades of Adirondack tops demonstrate that price is not always indicative of tonal properties. In Greven’s view, the middle grades are the best of the bunch:

Audio clip (62KB):
This ugly $65 top is stiff as steel, and coupled with moderate bracing would make a killer 000-18 or D-18.

Audio clip (37KB):
This $85 top has color streaks and variable grain.

Audio clip (57KB):
This $200 top is very pretty, but has a pitch pocket that can be located in the sound hole.

Audio clip (66KB):
22:04: $250 top, very pretty, very stiff, no discoloration.

Audio clip (65KB):
50-60-year-old Sitka spruce. Good for Gibson reproductions. Nasty, edgy quality.

Audio clip (58KB):
Another piece of the old Sitka

Audio clip (47KB):
Modern Sitka spruce.

Audio clip (39KB):
Carpathian spruce. Short sustain. Guitar will have power, but not sparkle.

Audio clip (38KB):
European red spruce

Audio clip (83KB):
These two Sitka tops have little lateral stiffness, and can practically be bent into a tube. Relatively articulate, but with little sustain.

Audio clip (1.60MB):
These two 00-18 guitars are identical but for the Sitka tops; the first has a top with little lateral stiffness. The guitarist is Duffy Calloway.

Identical Lutz-topped guitars with different back and sides:

Audio clip (772KB):
mahogany

Audio clip (792KB):
maple

Audio clip (790KB):
rosewood

Identical Lutz-topped guitars of different size:

Audio clip (224KB):
Single 0

Audio clip (217KB):
Double 0

Audio clip (212KB):
Triple 0

Similar guitars, one new and one old:

Audio clip (411KB):
4-1/2-year-old guitar has softer Adirondack top and braces is deeper and warmer, but without much sparkle.

Audio clip (378KB):
New guitar with stiffer top and braces is brighter, with more articulation.

Page 14 - Meet the Maker: Stephen Marchione by James Condino

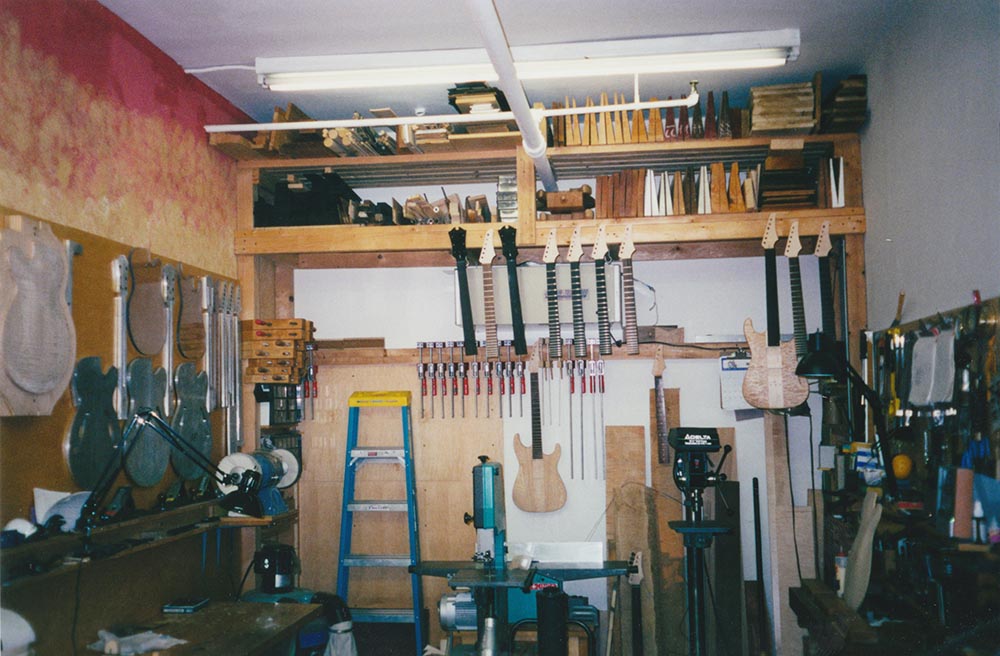

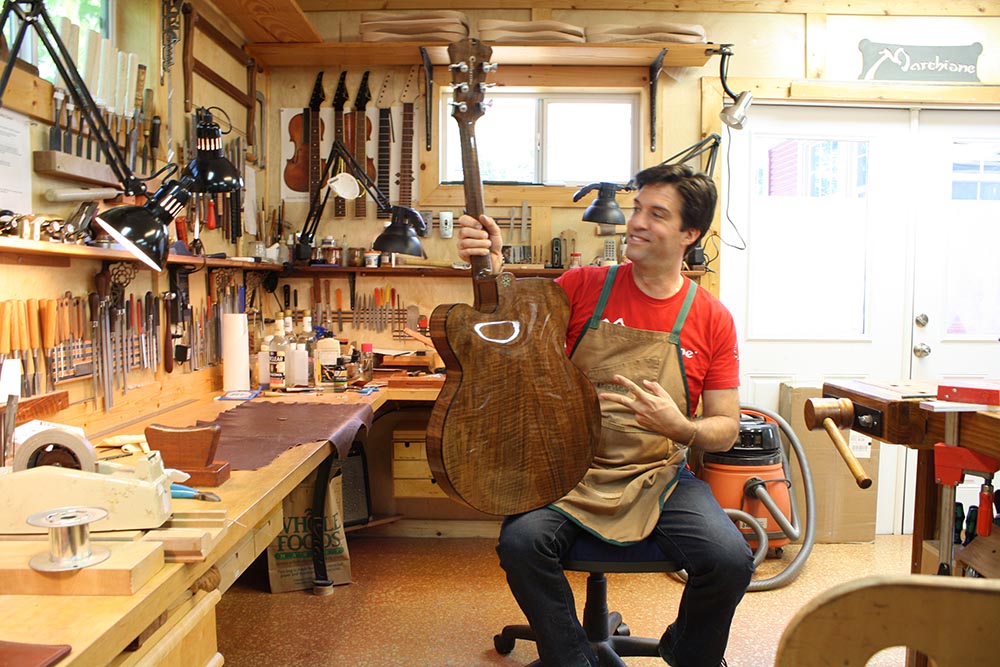

Attending Tom Ribbecke’s workshop on archtop plate carving at the 1995 GAL Convention. Steve Marchione is under the clock. Steve Marchione exhibiting at the 1995 GAL Convention. Marchione’s second Manhattan studio, 1995. Carving a walnut archtop back. The finished walnut archtop by Steve Marchione
Attending Tom Ribbecke’s workshop on archtop plate carving at the 1995 GAL Convention. Steve is under the clock. Exhibiting at the 1995 GAL Convention. Marchione’s second Manhattan studio, 1995. Carving a walnut archtop back. The finished walnut archtop.
Mark Whitfield plays a Marchione classical guitar Steve Marchione playing at the 2006 GAL Convention flamenco open mike with R.E. Brune. Steve Marchione playing at the 2006 GAL Convention flamenco open mike with R.E. Brune.
Mark Whitfield plays a Marchione classical guitar Playing at the 2006 GAL Convention flamenco open mike with R.E. Brune.
Page 38 - Let’s Catch Up with Fabio Ragghianti by Brian Yarosh

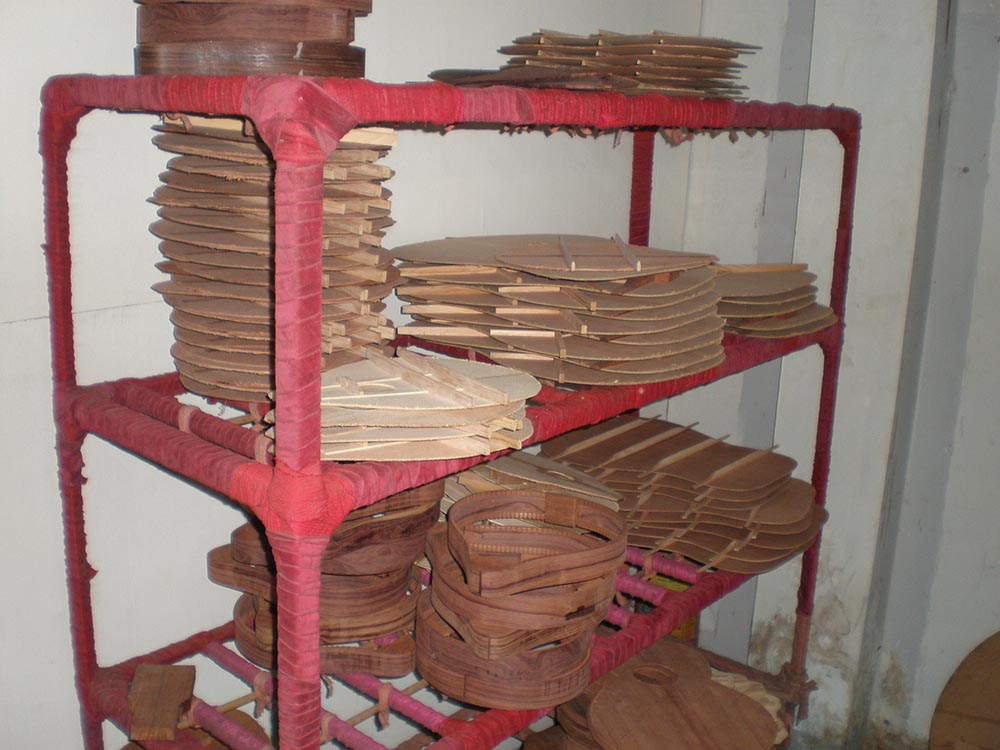

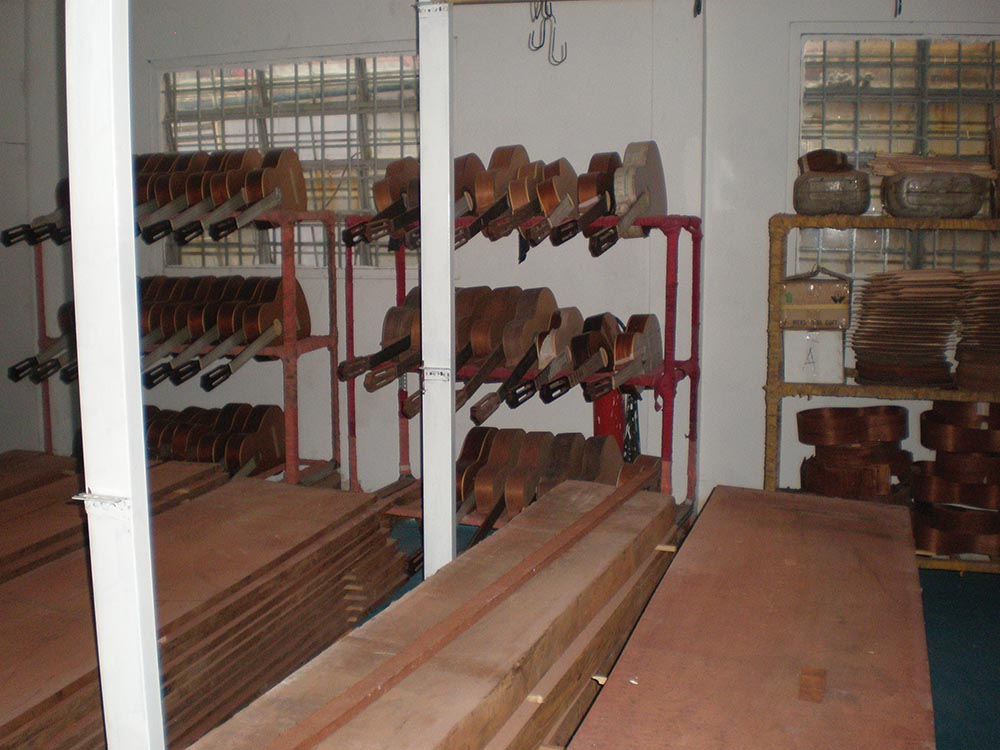

Fabio Ragghianti carving a mandolin top with a little helper, 1982 Instruments under construction in Vietnam. Instruments under construction in Vietnam. Fabio Ragghianti with Pete Seeger, 2001 George Benson holding Fabio’s radical classical at the 2010 NAMM show.
Carving a mandolin top with a little helper, 1982 Instruments under construction in Vietnam. Fabio with Pete Seeger, 2001 George Benson holding Fabio’s radical classical at the 2010 NAMM show.
Fabio Ragghianti
Page 64 - Product Reviews: Kahler 2415-CX Tremolo Bass Bridge
by Eron Harding

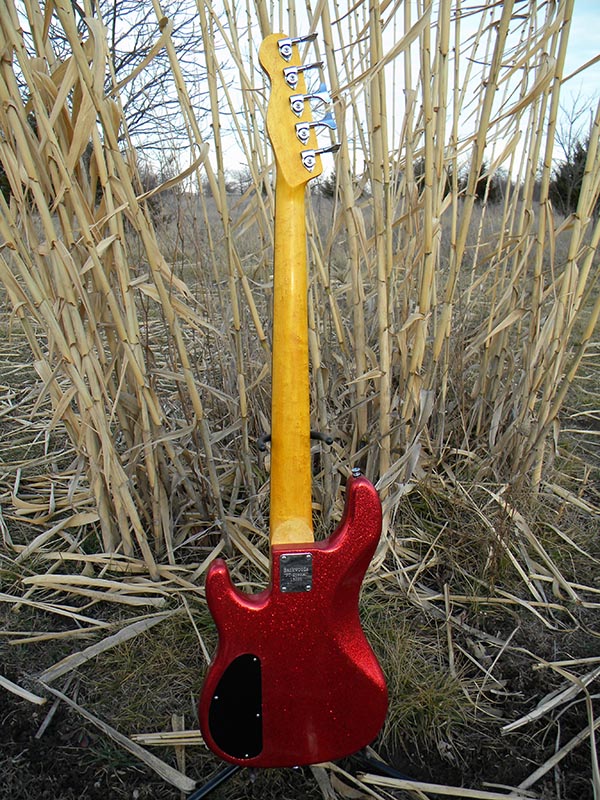

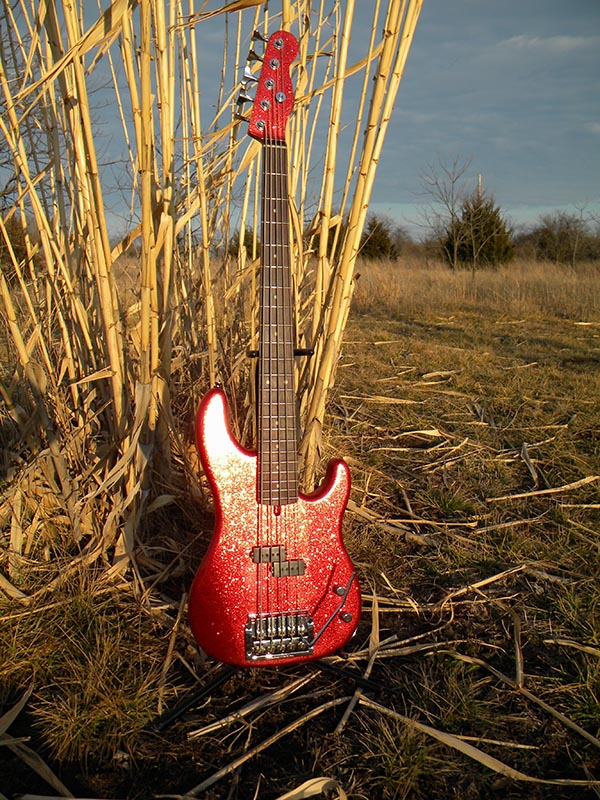

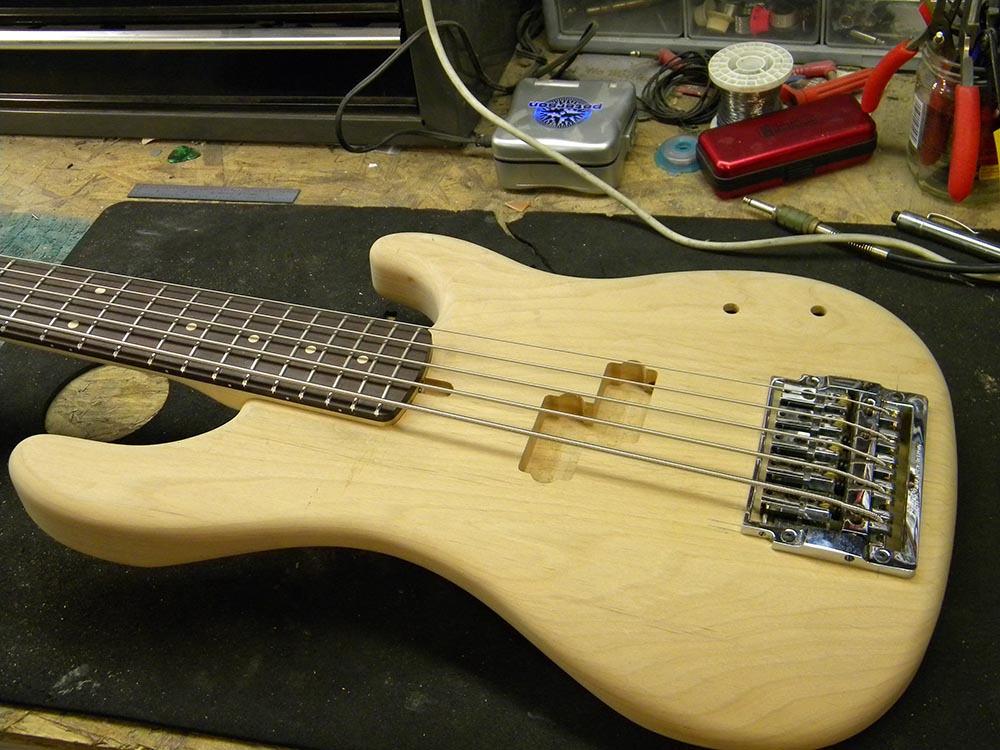

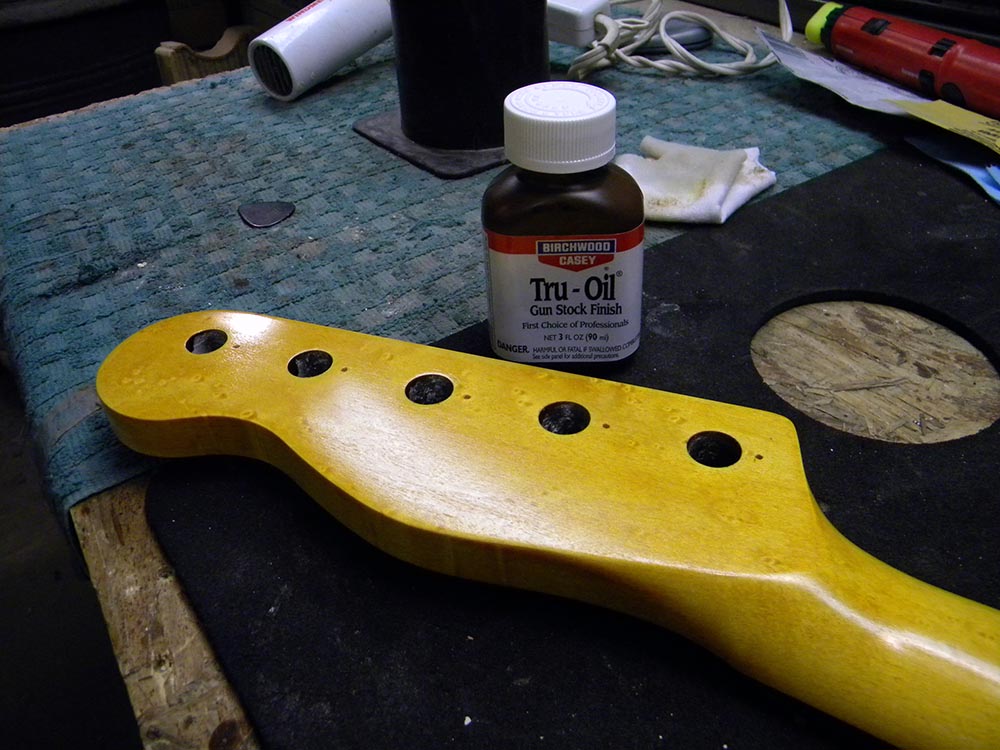

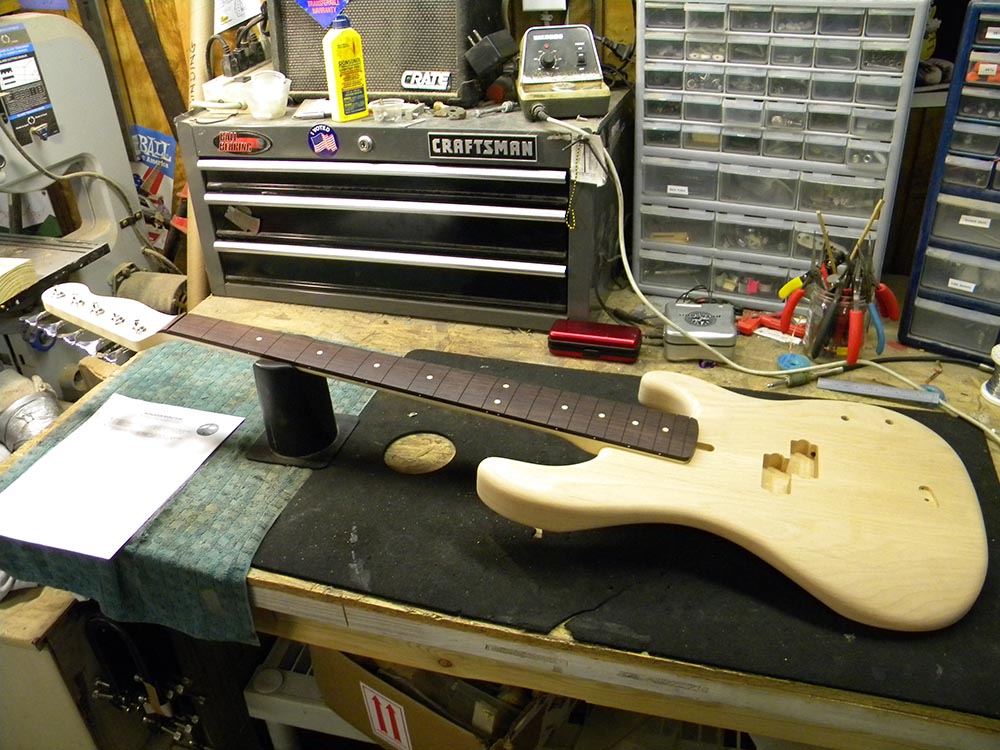

5-string bass guitar set to be routed for the Kahler tremolo bass bridge Kahler tremolo bass bridge installed on a unfinished bass guitar Back view of peghead of 5-string bass Front view of finished 5-string bass with Kahler tremolo bass bridge Back view of finished 5-string bass with Kahler tremolo bass bridge

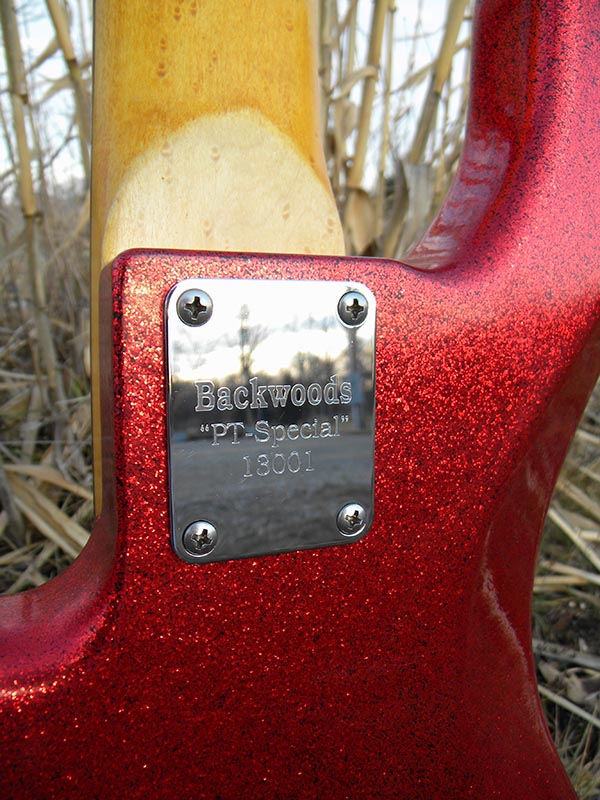

Neck plate on the finished bass guitar with Kahler tremolo bass bridge
