Ideas

Cuatro Puertorriqueno
by Giancarlo Scopinich

Nominal dimentions:
Length: 36"
Width: 12"
Depth: 3.25"
Scale: 22.75"

It is constructed with three layers of poplar .75" thick and two layers of .1875" mahogany, in .25" uniformed thickness all around the entire body.

For the top, .25" spruce. On the back, .25" mahogany.

In the second version it can be seen the 6 blocks I have used to reduce the weight of the instrument. The result to me was very practical.

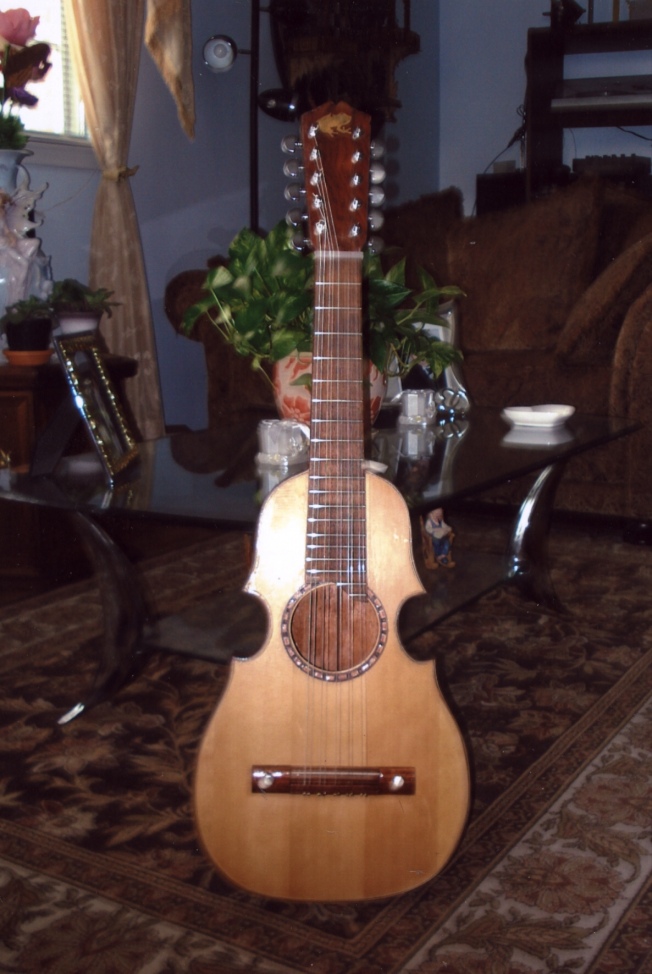

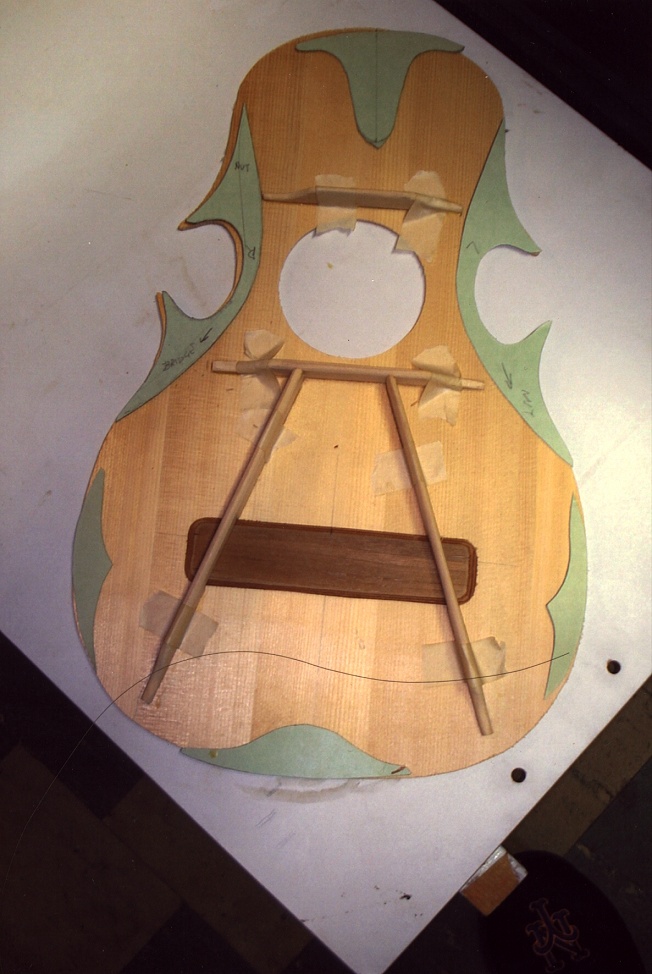

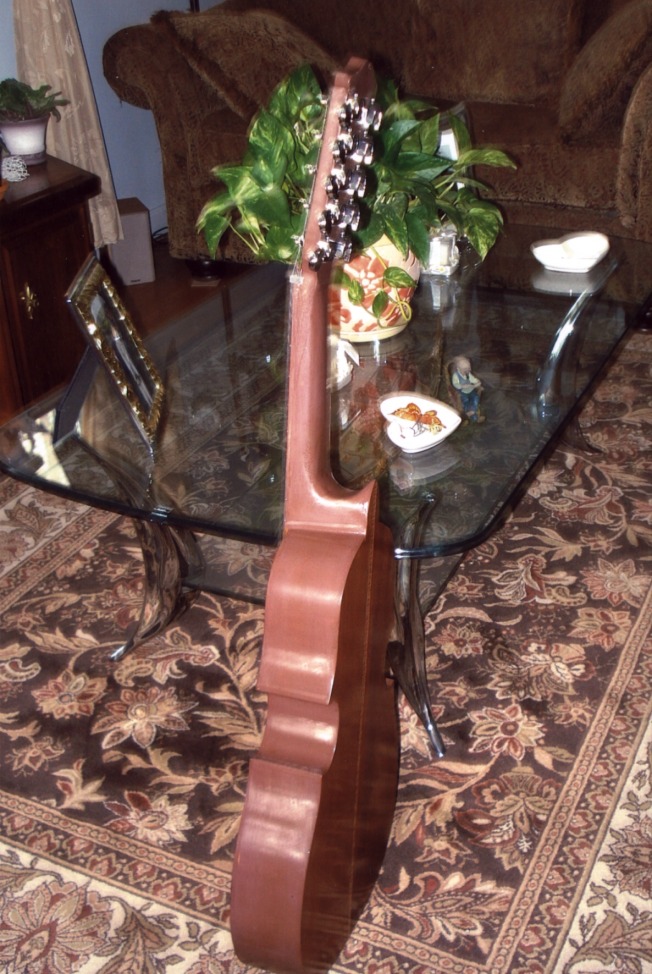

vull view of the Cuatro Puertorriqueno Sdie view of the Cuatro Puertorriqueno View of the bracing of the top of the Cuatro Puertorriqueno

Here is a PDF of the Cuatro Puertorriqueno plan.

Giancarlo Scopinich
giascop"at"aol.com
